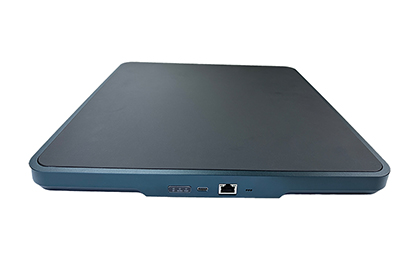

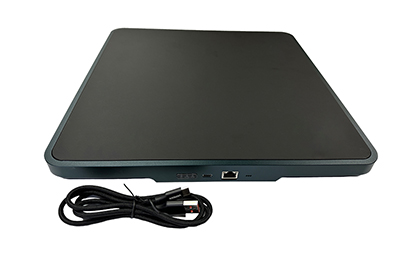

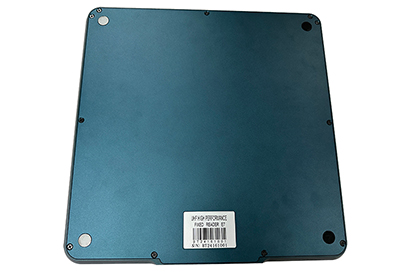

UHF Desktop Panel ReaderZK3232U-NF
ZK3232U-NF(USB) / ZK3232UBT-NF(BT5.1+USB) is high performance UHF Desktop Integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. Via Type-C USB 3.0 or BT5.1, this reader can interact with Windows, Android, IOS and other devices. It can be widely applied in many RFID application systems such as Jewelry Management, Library / Archive Librarian Workstation, Self-service Kiosk, Retail Logistics, Access Control, Anti-counterfeit and Industrial Production Process Control System, etc.
FEATURES
l Self-intellectual property;
l Based on Impinj E7 design, fully support 18000-6C (EPC CLASS1 G2) protocol tags;
l 840~960MHz frequency band (frequency customization optional);
l FHSS or Fix Frequency transmission, support RSSI;
l RF output power up to 27dbm (adjustable);
l Built-in antenna, typical reading effective distance ＜50cm* / 100~500cm* (various type antenna optional);
l Low power dissipation with Type-C USB 3.0 power supply (POE optional);
l Support Type-C USB3.0 interface (Bluetooth 4.2/5.1 optional);
l Provide DLL and Demonstration Software Source code to facilitate further development.
* Effective distance depends on antenna, tag and working environment.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
6 |
V |
|
Operating Temp. |
TOPR |
-20 ～ +50 |
℃ |
|
Storage Temp. |
TSTR |
-40 ～ +70 |
℃ |
l Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+5V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
4.8 |
5 |
5.5 |
V |
|
Current Dissipation |
IC |
|
|
2.5 |
A |
|
Frequency |
FREQ |
840 |
860~868 902~928 |
960 |
MHz |
